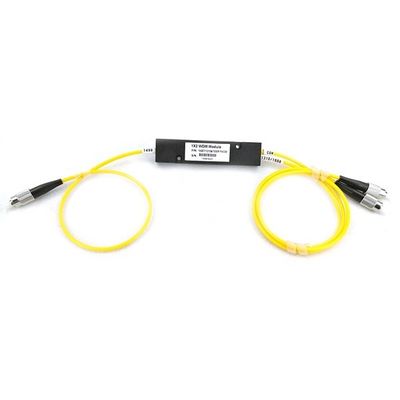

1310/1490nm Reflection ABS Module WDM FWDM Coupler 1*2 with SC/APC Connector

Name: 1310/1490nm Reflection ABS Module WDM FWDM Coupler 1*2 with SC/APC Connector
Brand: YINGDA TECHNOLOGY LIMITED
SKU: 1*2 FBT-koppeling 15%:85%
Price: 2.10 USD
Availability: InStock

Merknaam:	Yingda
Modelnummer:	1*2 FBT-koppeling 15%:85%
MOQ:	100 stuks
Prijs:	1.1USD-4.58USD
Leveringstermijn:	7 dagen
Betalingsvoorwaarden:	T/T, Western Union, MoneyGram

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Certificering:

ISO

Reflectie:

1310/1490nm

transmissie:

1550 nm

Type aansluiting:

SC/UPC SC/APC

Vlakken:

SMF-28e

Pakket:

blisterdoos, 1pc/doos

Verpakking Details:

1 stuks per doos, 10 stuks per hoofddoos

Levering vermogen:

20000 stuks per maand

Markeren:

1*2 SC/APC WDM FWDM Coupler

1310/1490nm 1*2 FWDM Coupler

SC APC 1310/1490nm FWDM Coupler

Productbeschrijving

FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.

Specification

Parameter		FWDM 4/35	FWDM 5/35	FWDM 35/5
Pass Band Wavelength Range (nm)		1480~1500	1540~1560	1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm)		1260 ~ 1360	1260 ~ 1360	1540~1560
Reflection Band1 Wavelength Range (nm)		1540~1560	1480~1500
Insertion Loss (dB)	Reflect Channel	≤0.6
	Pass Channel	≤0.8
Pass Band Rippler(dB)		<0.3
Isolation (dB)	Reflect Channel	> 15
	Pass Channel	>30
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>50
Maximum Power Handling (mW)		500
Operating Temperature (℃)		-20 ~+70
Storage Temperature (℃)		-40 ~+85
Package Dimension (mm)		1. Φ5.5 x L34(for 900um Loose tube) 2. Φ5.5 x L30(for bare fiber ) 3. L90xW20xH9.5(for 2.0/3.0mm Cable)

NOTE:

For device with connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

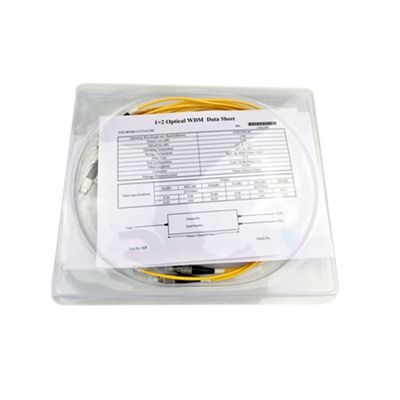

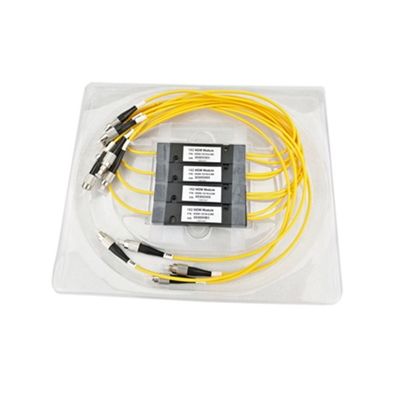

Package information:

1310/1490nm Reflection ABS Module WDM FWDM Coupler 1*2 with SC/APC Connector 0

1310/1490nm Reflection ABS Module WDM FWDM Coupler 1*2 with SC/APC Connector 1
